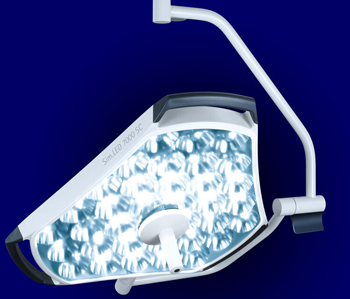

SIM.LED 7000

The very latest single-color white-light LEDs, the patented reflector technology and the positioning of the LEDs as part of a unique design all lead to more light and no shadows. The large light-emitting surface generates perfectly homogeneous, shadow-free illumination thanks to a carefully conceived arrangement of SIMEON reflector light modules and perfect bundling and overlapping of light rays.

SIMEON’s Reflector Shadow Resolution System (RSRS) gives you excellent illumination at all times and in every situation – without any sensor systems or automatic adjustment of the light values.

Further the aluminum housing and the well-established heat management offers two important advantages:

  • Avoidance of heat accumulation by direct heat sink function which leads to an extremely long lifetime of the LED’s.
  • The optimized heat management and the very low power consumption creates a perfect hygienic environment under laminar flow ceiling conditions.

The hygienic standards of an excellent OR-light system are determined by a simple and fast possibility of disinfecting the light head. This is accommodated by the use of ESG safety glass (instead of coated plastic glass), the sealed design of the Sim.LED series and the usage of Anti.BAC coating.

Operating Functions


All operating functions are intuitively controllable via cardanic control panel:

  • On/Off button with LED
  • Sim.BIANCE button (background illumination for endoscopic procedures)
  • Illumination intensity plus/minus (8 steps)
  • Illuminated field size plus/minus (5 steps)
  • Further the my.GRIP function offers a sterile control of two operating functions in parallel and directly on the sterile handle with up to 12 freely selectable combinations.

    Technical Data


    Simeon Highline OR light Sim.LED 7000
    Central illumination intensity at a distance of 1 m [lx] 160,000
    Electronic dimmability from/to [lx] 48,000-160,000
    Color temperature [K] 3,500/4,000/4,500/ 5,000/5,500 [MC]
    4,500 [SC]
    Focusable field size d10 at a distance of 1m [mm] 180-300
    Color rendering index Ra in every color temperature setting 96
    Light head power consumption [W] 52 [MC]
    53 [SC]
    LED life time [h] > 60,000
    Approval CE
