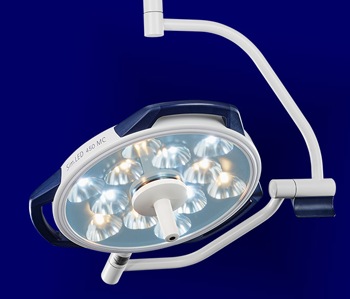

SIM.LED 450 SC / MC

With its BusinessLine, SIMEON has developed a completely new light range, with which we are opening up an entirely new market segment for the SIMEON brand, since the BusinessLine brings technological excellence to any OR in the world. The BusinessLine completes SIMEON’s product portfolio.

In the future, there will be no limits to the combinations of small Sim.LED 450, medium-sized Sim.LED 500 and large Sim.LED 700 surgical lights in single and multi-color, with and without cameras. SIMEON’s BusinessLine offers the perfect light for every OR situation and every user.

An important component of the BusinessLine is – as for all SIMEON lights – the SIMEON patented and market - leading reflector technology. BusinessLine OR lights are also produced from high-quality materials such as aluminum and glass, provide hygienically optimized surfaces, and offer the typical SIMEON light quality.

Operating Functions


All operating functions are intuitively controllable via cardanic control panel:

  • On/Off button with LED
  • My.LED button (storage function)
  • Sim.BIANCE button (background illumination for endoscopic procedures)
  • Illumination intensity plus/minus (8 steps)
  • Illuminated field size plus/minus (5 steps)
  • Color temperature plus/minus (5 steps)
  • Further the my.GRIP function offers a sterile control of two operating functions in parallel and directly on the sterile handle with up to 12 freely selectable combinations.

    Technical Data


    Simeon BusinessLine Sim.LED 450 MC / SC
    Central illumination intensity at a distance of 1 m [lx] 120,000
    Electronic dimmability from/to [lx] 36,000-120,000
    Color temperature [K] 3,500/4,000/4,500/ 5,000/5,500 [MC]
    4,500 [SC]
    Focusable field size d10 at a distance of 1m [mm] 160-230 [MC]
    160-250 [SC]
    Color rendering index Ra in every color temperature setting 96
    Light head power consumption [W] 51 [MC]
    45 [SC]
    LED life time [h] > 60,000
    Approval CE
